Plumbing Vent Diagram: Decode It Like A Pro! [Guide]

Understanding the complexities of residential drainage systems requires a solid grasp of the plumbing vent diagram. These diagrams are essential tools for plumbers and homeowners alike, illustrating how ventilation systems prevent the siphoning of water from P-traps. Properly interpreting a plumbing vent diagram ensures that your system adheres to local building codes, such as those enforced by your city’s permit office. Furthermore, it enables correct installation and troubleshooting, often requiring the application of knowledge gleaned from resources like the International Plumbing Code (IPC). By decoding the plumbing vent diagram, you can maintain a safe and efficient plumbing system in your home.

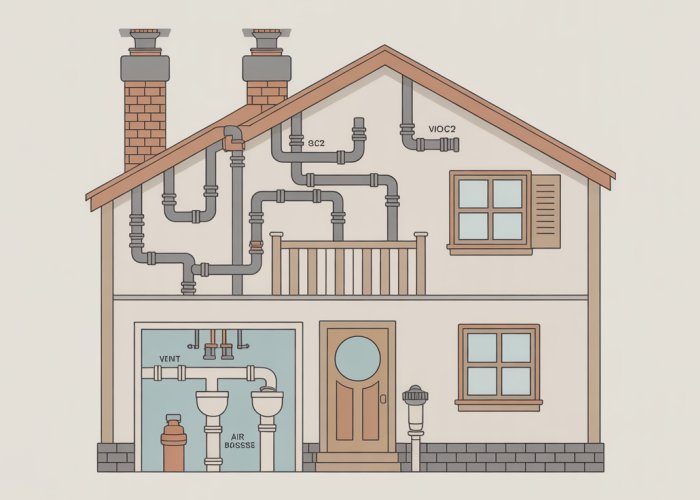

Plumbing vent diagram showing proper vent pipe installation and connections.

Plumbing systems are far more complex than simply supplying water and carrying waste away. A critical, often unseen, component is the plumbing vent system. This network of pipes plays a vital role in maintaining a healthy and functional plumbing environment within any building. Understanding its purpose, design, and how it’s represented in diagrams is essential for homeowners, contractors, and anyone involved in building maintenance.

Table of Contents

The Unsung Hero: Purpose of Plumbing Vent Systems

At its core, the plumbing vent system is designed to regulate air pressure within the drain pipes. Without proper venting, a vacuum can form as water flows through the pipes. This vacuum can siphon water out of the P-traps under sinks, tubs, and toilets, which are designed to prevent sewer gases from entering the building.

The vent system equalizes pressure, allowing wastewater to flow freely and efficiently. Think of it like this: a bottle empties smoothly when air can enter to replace the liquid leaving it. The same principle applies to your plumbing.

Why Understanding Vent Diagrams Matters

Plumbing vent diagrams are visual representations of this crucial system. They provide a roadmap of the vent pipes, showing their size, location, and connections to the drain lines and the outside atmosphere.

Being able to interpret these diagrams allows you to:

  • Identify potential problems: Recognize improper vent configurations that could lead to issues like slow drainage or sewer gas leaks.

  • Plan renovations: Understand how changes to the plumbing system will affect the venting and ensure that any modifications comply with local codes.

  • Communicate effectively with plumbers: Clearly explain your plumbing needs and understand the plumber’s recommendations.

The Consequences of Improper Venting

A poorly designed or improperly installed vent system can lead to a range of problems, from minor inconveniences to serious health hazards.

Sewer gas, a byproduct of decomposing waste, can seep into your home through dry P-traps if the venting is inadequate. Sewer gas contains methane, hydrogen sulfide, and ammonia, which can cause unpleasant odors and, in high concentrations, can even be flammable or explosive.

Beyond the unpleasant smells, improper venting can also cause slow drainage and gurgling sounds in your drains. This is because the vacuum created in the pipes restricts the flow of water, leading to sluggish performance.

Empowering You to Understand Plumbing Vent Diagrams

This guide aims to demystify plumbing vent diagrams, breaking down the complex network of pipes and fittings into understandable components. By the end of this guide, you’ll be equipped to:

  • Identify the key elements of a plumbing vent diagram.
  • Understand the different types of vents and their functions.
  • Trace the path of the vent system from fixtures to the roof.
  • Recognize potential venting problems and understand their causes.

With this knowledge, you can take a proactive approach to maintaining your plumbing system, ensuring its efficiency, safety, and longevity.

Plumbing vent diagrams are visual representations of this crucial system. They provide a roadmap of the vent pipes, showing their size, location, and connections to the drain lines and the outside atmosphere. Understanding how all the pipes and ventilation work together, and where each component sits in the overall system, is the first step to making sense of any plumbing schematic.

Understanding the DWV System: The Foundation of Plumbing

The Drain-Waste-Vent (DWV) system is the backbone of any functional plumbing setup. It’s an interconnected network that efficiently removes wastewater and maintains a sanitary environment. Without a properly functioning DWV system, homes and buildings would be unsanitary and uninhabitable.

The Three Pillars of DWV

The DWV system comprises three essential components, each playing a distinct role:

  • Drains: These are the entry points for wastewater. They are the fixtures you interact with daily, such as sinks, showers, and toilets.

  • Waste Lines: These pipes carry wastewater away from the drains to the main sewer line or septic system. They’re typically sloped to ensure gravity assists the flow.

  • Vents: This is where the plumbing vent system comes into play. Vents regulate air pressure within the drain pipes, preventing siphoning and allowing wastewater to flow freely.

Roles of Drains, Waste Lines, and Vents

Understanding how each component functions is critical.

  • Drains collect wastewater from fixtures, channeling it into the waste lines. The design of the drain, including the P-trap, is crucial for preventing sewer gases from escaping into the building.

  • Waste Lines transport the wastewater to the sewage disposal system. The diameter and slope of these lines are carefully calculated to ensure proper flow and prevent blockages.

  • Vents are the unsung heroes, maintaining neutral air pressure in the drain lines. By allowing air to enter the system, they prevent vacuums from forming, which can siphon water from the P-traps.

The Importance of Proper Ventilation

Proper ventilation is paramount to the DWV system’s functionality. Without it, the system becomes prone to various issues.

Inadequate ventilation can lead to:

  • Slow Drainage: Vacuum pressure impedes the flow of water.

  • Sewer Gas Leaks: Siphoned P-traps allow noxious and potentially harmful gases to enter the building.

  • Damage to the Plumbing System: Excessive pressure fluctuations can stress pipes and joints, leading to leaks and damage over time.

The plumbing vent system mitigates these problems by ensuring proper airflow throughout the DWV network. It equalizes pressure, prevents siphoning, and allows wastewater to drain smoothly and efficiently.

The waste lines efficiently remove wastewater, but they couldn’t function without a crucial partner: the plumbing vent system. Understanding its vital role goes far beyond simply acknowledging its presence; it’s about appreciating how it safeguards the entire plumbing environment.

The Vital Role of the Plumbing Vent System: Beyond Drainage

The plumbing vent system is much more than just an afterthought in building design; it’s an essential component that underpins the functionality, safety, and longevity of the entire plumbing infrastructure. While its contribution to drainage is evident, the true scope of its influence extends much further, impacting everything from air pressure regulation to the removal of harmful sewer gases.

The Multi-Faceted Function of Vent Systems

The plumbing vent system performs a series of critical functions, ensuring the smooth and reliable operation of the entire DWV system. These functions, while often unseen, are fundamental to maintaining a healthy and functional plumbing environment.

Equalizing Air Pressure: Preventing the Vacuum Effect

Perhaps the most crucial function of the vent system is to equalize air pressure within the drain pipes. As wastewater flows through the drainage system, it can create a vacuum behind it. Without a vent, this vacuum could siphon water from the P-traps of your fixtures, which would allow sewer gases to enter the building.

The vent system introduces air into the drain pipes, counteracting the vacuum and ensuring that water flows smoothly without disturbing the water seals in the traps.

Preventing Backflow and Siphonage: Safeguarding Water Quality

The vent system’s role in preventing backflow and siphonage is closely linked to its ability to regulate air pressure. By allowing air to enter the drain pipes, the vent system prevents a negative pressure from developing that could pull wastewater back into the fixtures or siphon the water from the P-traps.

Maintaining the water seal in the P-traps is essential for preventing sewer gases from entering the building, ensuring the safety and health of the occupants.

Promoting Proper Drainage: Ensuring Efficient Waste Removal

A properly functioning vent system is essential for promoting efficient and reliable drainage. By equalizing air pressure and preventing the vacuum effect, the vent system allows wastewater to flow freely through the drain pipes without any restrictions.

This not only prevents slow or sluggish drainage but also reduces the risk of blockages and backups in the plumbing system.

Removing Harmful Sewer Gases: Protecting Indoor Air Quality

One of the most critical roles of the vent system is to remove harmful sewer gases from the building. Sewer gases, which are produced by the decomposition of organic matter in the wastewater, can be dangerous and unpleasant.

These gases, including methane, hydrogen sulfide, and ammonia, can pose health risks if allowed to accumulate in enclosed spaces. The vent system provides a pathway for these gases to escape into the atmosphere, away from the building’s occupants. By venting these gases safely, it helps to maintain healthy indoor air quality.

The waste lines efficiently remove wastewater, but they couldn’t function without a crucial partner: the plumbing vent system. Understanding its vital role goes far beyond simply acknowledging its presence; it’s about appreciating how it safeguards the entire plumbing environment.

Anatomy of a Vent Diagram: Key Components Unveiled

To truly decipher a plumbing vent diagram, we must familiarize ourselves with its core elements. These diagrams, often appearing complex at first glance, are essentially roadmaps of the vent system, clearly illustrating how air is managed within the DWV network. Understanding these key components is the first step toward mastering the art of reading and interpreting these essential documents.

The Central Pillars: Vent Stack, Vent Pipes, and Roof Vent

Three components form the backbone of almost every vent system and are prominently featured in diagrams: the vent stack, vent pipes, and the roof vent.

  • Vent Stack: The vent stack is the primary vertical pipe responsible for extending the venting system to the outside atmosphere. It’s the main conduit for air, allowing it to enter the drainage system and equalize pressure. Think of it as the central trunk of a tree, from which all other branches (vent pipes) extend. Diagrams will clearly indicate the vent stack’s vertical rise, often extending through the roof.

  • Vent Pipes: These pipes connect individual fixtures or groups of fixtures to the vent stack. Vent pipes come in various forms and serve to provide air to specific areas of the drainage system, preventing pressure imbalances. These are the crucial links between the drainage and the main vent stack.

  • Roof Vent: The roof vent is the termination point of the vent system, where it exits the building and releases gases into the atmosphere. Its placement is critical to prevent sewer gases from re-entering the building through windows or air intakes. Diagrams show its location and often specify its height above the roofline, adhering to local plumbing codes.

Venting Variations: Horizontal, Vertical, Individual, Common, Offset, and Branch

Beyond the core components, several variations of vent pipes cater to specific plumbing configurations. Understanding these different types allows for a more nuanced interpretation of vent diagrams.

  • Horizontal Vent and Vertical Vent: These simply refer to the orientation of the vent pipe – horizontal vents run along a horizontal plane, while vertical vents run vertically. Diagrams clearly illustrate the directional path these pipes take.

  • Individual Vent: Also known as a re-vent, an individual vent connects directly to a single fixture’s drain line before it connects to the main waste line. This ensures optimal venting for that specific fixture.

  • Common Vent: A common vent serves two or more fixtures that are installed back-to-back or side-by-side. This shared venting approach can simplify the system while still providing adequate air circulation.

  • Offset Vent: An offset vent is used when a vent pipe needs to deviate from a straight vertical path due to obstructions or structural limitations. The diagram will show the angle and distance of the offset.

  • Branch Vent: A branch vent connects to multiple individual or common vents, consolidating the airflow into a larger vent pipe before connecting to the vent stack. It acts as a gathering point for ventilation.

Types of Plumbing Vents: A Comprehensive Guide

Having established the critical roles that vent stacks, vent pipes and roof vents play in the anatomy of any well-designed system, it’s important to understand that they represent just the beginning of plumbing ventilation. The true versatility of a vent system comes from the variety of vent types available, each meticulously engineered to address unique plumbing scenarios. This exploration will cover the spectrum of vent designs, from the foundational vent stack to specialized solutions such as wet venting and air admittance valves.

Vent Stack: The Central Airway

The vent stack stands as the primary vertical extension of the drainage system, reaching upwards to connect with the outside atmosphere. It serves as the central conduit for air, allowing it to freely circulate within the DWV system. This constant airflow ensures that pressure differentials don’t compromise the integrity of trap seals, preventing sewer gases from escaping into the living space.

Think of the vent stack as the lifeline of the entire venting network.

Its unobstructed vertical path is crucial for maintaining optimal air pressure throughout the system, promoting efficient drainage and a safe, odor-free environment.

Individual Vents (Re-Vents): Fixture-Specific Protection

Also known as re-vents, individual vents are dedicated to single fixtures. These vents connect directly to the drain line of a specific fixture, extending upwards and tying into the main vent stack or a branch vent. This localized venting strategy provides superior protection against trap siphonage, particularly for fixtures prone to heavy usage or those located at the end of a branch line.

By providing a direct air source for each fixture, individual vents minimize pressure fluctuations and ensure consistent drainage performance.

Common Vents: Shared Venting Solutions

In certain plumbing configurations, a single vent can serve multiple fixtures. These common vents offer an efficient solution for venting fixtures that are located close together, such as a double sink or a back-to-back lavatory setup. By consolidating venting requirements, common vents can simplify plumbing installations and reduce material costs.

However, it’s important to carefully consider the load and location of fixtures sharing a common vent to ensure adequate ventilation and prevent potential drainage issues.

Wet Venting: Dual-Purpose Plumbing

Wet venting represents a unique and often misunderstood venting technique. It involves utilizing a section of drain line as both a drain and a vent. This is typically achieved by carefully sloping and sizing the drain line to allow for both wastewater flow and airflow.

Wet venting is commonly employed in residential settings to simplify plumbing layouts and minimize the number of vent pipes required. However, it’s crucial to adhere to strict plumbing codes and guidelines when implementing wet venting to ensure proper drainage and ventilation.

The key to successful wet venting lies in maintaining adequate airflow within the drain line, preventing solids from accumulating and obstructing the venting path.

Loop Vents: Island Fixture Innovations

Loop vents are specifically designed for island sinks or fixtures that are located away from walls, where conventional venting methods are impractical. A loop vent consists of a vertical pipe that rises from the drain line below the floor, loops upwards above the flood rim of the fixture, and then connects back into the drain line or a nearby vent.

This looped configuration provides an effective air pathway for the trap, preventing siphonage and ensuring proper drainage for island fixtures. Loop vents offer a neat and code-compliant solution for challenging plumbing scenarios.

Air Admittance Valves (AAVs): The Modern Venting Alternative

Air Admittance Valves (AAVs) represent a modern alternative to traditional vent pipes. These one-way valves allow air to enter the drainage system when negative pressure develops, preventing trap siphonage. However, they do not allow air to escape, thus they cannot replace a vent stack in the system.

AAVs are commonly used in situations where conventional venting is difficult or impossible, such as in remodeling projects or when adding fixtures to existing plumbing systems. While AAVs offer a convenient venting solution, it’s crucial to select code-approved valves and install them according to manufacturer’s instructions to ensure proper performance and compliance. It’s also worth noting that AAVs are not universally accepted by all plumbing codes, so it’s essential to verify local regulations before installation.

Having explored the diverse world of plumbing vents, from the stalwart vent stack to the adaptable AAV, it’s time to translate this knowledge into practical application. Reading a vent diagram might seem daunting at first, but with a systematic approach, you can unlock a wealth of information about the system’s design and functionality. This section provides a step-by-step guide to help you confidently interpret these crucial schematics.

Reading Vent Diagrams: A Step-by-Step Guide

Plumbing vent diagrams are more than just lines on paper; they’re roadmaps to understanding the health and efficiency of your plumbing system. Mastering the ability to interpret these diagrams empowers you to diagnose problems, plan renovations, and communicate effectively with plumbing professionals. Let’s break down the process into manageable steps.

Step 1: Deciphering Pipe Identification

The first step in reading any plumbing diagram is identifying the different pipes within the system. Diagrams typically use distinct symbols and labels to differentiate between drain lines, waste lines, and, crucially, vent pipes. Familiarize yourself with the common conventions used in your region or by your specific diagram.

Identifying Pipe Materials

Beyond the type of pipe, the material is also vital. Common materials such as PVC (Polyvinyl Chloride), ABS (Acrylonitrile Butadiene Styrene), and Cast Iron each have their own standardized symbols or abbreviations on the diagram. Look for a legend or key that defines these markings.

PVC is often represented by a specific color (usually white or gray) and the letters "PVC." ABS is similar but typically black. Cast iron might be indicated by hatching or shading and the letters "CI." Understanding these material distinctions is important because different materials have different properties, code requirements, and joining methods.

Understanding Pipe Sizes

Pipe sizes are also usually indicated on the diagram, typically near the pipe itself. These measurements are crucial for determining the capacity of the vent system and ensuring it meets code requirements. Pipe sizes are usually indicated in inches (e.g., 1 1/2", 2", 3").

Always cross-reference the pipe sizes with the plumbing code requirements in your area to ensure compliance.

Step 2: Tracing the Vent System’s Path

Once you can identify the different components, the next step is to trace the path of the vent system from the fixtures to the roof vent. Start at a fixture (e.g., sink, toilet, shower) and follow the vent pipe upwards.

Pay close attention to how the individual vents connect to the main vent stack or branch vents. Note any changes in direction or pipe size along the way. The goal is to understand how air flows through the system and how each fixture is protected from trap siphonage.

Understanding Connections and Fittings

As you trace the vent system, pay attention to the types of fittings used (e.g., elbows, tees, wyes). These fittings play a crucial role in directing airflow and connecting different sections of the vent system. Different fittings have different pressure drop characteristics, which can affect the overall efficiency of the vent system.

Step 3: Interpreting Slope and Angles

Vent pipes are not always perfectly vertical or horizontal. They often have a slight slope to allow any condensation or rainwater that enters the vent to drain back into the drainage system.

Diagrams may indicate the slope of vent pipes using a percentage or a fraction (e.g., 1/4" per foot). Understanding the slope is critical because an improper slope can lead to water accumulation in the vent pipe, which can obstruct airflow and compromise the venting system’s effectiveness.

Deciphering Angles and Offsets

Vent systems often have offsets (horizontal or angled sections) to avoid obstructions or to connect to other parts of the plumbing system. These offsets are typically indicated on the diagram with their angle of deviation from the vertical. It’s important to understand these angles, as sharp bends can restrict airflow.

Step 4: Cross-referencing with Plumbing Codes

Always compare the vent system layout and specifications in the diagram with the local plumbing codes. Codes dictate requirements for vent size, height, location, and the distance of vent termination from air intakes and windows. This step is crucial for ensuring that the venting system is compliant with safety regulations.

Failure to adhere to plumbing codes can result in fines, safety hazards, and compromised plumbing performance.

By following these steps, you can confidently read and interpret plumbing vent diagrams, gaining a deeper understanding of how your plumbing system works and how to maintain it effectively.

Having explored the diverse world of plumbing vents, from the stalwart vent stack to the adaptable AAV, it’s time to translate this knowledge into practical application. Reading a vent diagram might seem daunting at first, but with a systematic approach, you can unlock a wealth of information about the system’s design and functionality. This section provides a step-by-step guide to help you confidently interpret these crucial schematics.

Plumbing Codes and Venting: Ensuring Compliance

Plumbing codes are not arbitrary rules but rather carefully considered regulations designed to protect public health and safety. When it comes to venting, these codes are particularly critical, ensuring proper airflow, preventing the escape of harmful gases, and maintaining the integrity of the entire plumbing system. Ignoring these codes can lead to serious consequences, from health hazards to structural damage.

The Imperative of Code Adherence

Adhering to plumbing codes isn’t merely a suggestion; it’s a legal requirement in most jurisdictions. These codes are developed and enforced by local, regional, or national authorities to standardize plumbing practices and guarantee a baseline level of safety and efficiency.

Failing to comply with these codes can result in fines, mandatory corrections, and even legal action. More importantly, non-compliance puts occupants at risk and can compromise the long-term performance of the plumbing system.

Common Plumbing Codes Related to Venting: An Overview

Several model plumbing codes are widely adopted and adapted across different regions. Understanding the key principles of these codes is essential for anyone involved in plumbing design, installation, or maintenance.

  • International Plumbing Code (IPC): A comprehensive model code developed by the International Code Council (ICC), the IPC is widely used in the United States and other countries. It covers all aspects of plumbing systems, including detailed requirements for venting.

  • Uniform Plumbing Code (UPC): Developed by the International Association of Plumbing and Mechanical Officials (IAPMO), the UPC is another prominent model code used extensively in the Western United States. Like the IPC, it provides thorough guidelines for plumbing vent systems.

  • National Plumbing Code of Canada (NPC): This code governs plumbing practices throughout Canada, outlining specific requirements for venting systems tailored to the Canadian climate and building standards.

Vent Size, Height, and Location: Key Code Requirements

Plumbing codes specify precise requirements for vent size, height, and location to ensure optimal performance and safety. These requirements are based on factors such as fixture unit count, pipe diameter, and building configuration.

  • Vent Size: The size of the vent pipe must be adequate to handle the volume of air required to prevent pressure imbalances in the drain lines. Codes typically provide tables that correlate fixture unit load with minimum vent pipe diameter. Undersized vents can lead to siphoning and drainage problems.

  • Vent Height: Vent pipes must extend above the roofline to allow for proper ventilation and to prevent sewer gases from re-entering the building. Codes specify minimum height requirements above the roof surface, as well as clearances from nearby structures or obstructions.

  • Vent Location: The location of vent pipes is also carefully regulated to prevent potential hazards. Vents must be positioned to avoid trapping snow or debris and to ensure adequate airflow. They should also be located away from areas where they could be easily damaged or obstructed.

Vent Termination: Distance from Air Intakes and Windows

Perhaps one of the most critical aspects of venting codes concerns the termination point of vent pipes. To prevent sewer gases from entering the building through windows, doors, or air intakes, codes mandate specific minimum distances between vent terminations and these openings.

  • Codes often specify that vent terminations must be at least 10 feet away from any window, door, or air intake. This distance may vary depending on the height of the vent and the prevailing wind conditions.

  • The rationale behind these requirements is simple: sewer gases are not only unpleasant but also potentially harmful. Exposure to high concentrations of sewer gases can cause health problems, including headaches, nausea, and respiratory irritation.

  • Moreover, codes may also address the direction of vent termination, requiring that vents be directed upwards or away from building openings to minimize the risk of gas re-entry.

By adhering to these detailed requirements, plumbers and building professionals can ensure that plumbing vent systems function safely and effectively, protecting the health and well-being of building occupants. Ignoring these codes is not only a violation of the law but also a serious gamble with public safety.

Having explored the diverse world of plumbing vents, from the stalwart vent stack to the adaptable AAV, it’s time to translate this knowledge into practical application. Reading a vent diagram might seem daunting at first, but with a systematic approach, you can unlock a wealth of information about the system’s design and functionality. This section provides a step-by-step guide to help you confidently interpret these crucial schematics.

Troubleshooting Venting Problems: Identifying and Solving Issues

A properly functioning plumbing vent system is critical for a healthy and efficient home. When venting is compromised, it manifests in a variety of frustrating and often unpleasant symptoms. Recognizing these signs is the first step toward restoring your plumbing system to optimal operation.

This section delves into common venting problems, outlining both the symptoms and effective solutions.

Identifying Common Symptoms of Improper Venting

Several telltale signs indicate that your plumbing vent system may be experiencing issues. Understanding these indicators allows for prompt diagnosis and resolution.

Slow Drainage: A Primary Indicator

One of the most common indicators of a venting problem is sluggish drainage. When sinks, tubs, or toilets drain noticeably slower than usual, it often signals that the vent system isn’t adequately equalizing air pressure within the drain pipes. This creates a partial vacuum, hindering the flow of water and waste.

Think of it like trying to pour liquid from a bottle without a vent – it glugs and sputters instead of flowing smoothly.

Sewer Gas Odors: A Health Hazard

The presence of sewer gas odors inside your home is a serious warning sign. A properly functioning vent system directs these noxious gases safely outside. When the system is compromised, perhaps due to a blockage or disconnected vent pipe, these gases can escape into living spaces, posing a health risk.

Sewer gas contains methane, hydrogen sulfide, and ammonia, all of which can be harmful in high concentrations.

Gurgling Sounds in Drains: An Audible Clue

Gurgling sounds emanating from drains are another strong indication of venting problems. These noises often occur when air is forced through the water in the drain trap, attempting to equalize pressure. The gurgling is the sound of the system struggling to breathe.

This usually happens when a fixture is draining, or even after the draining process is complete.

Solutions for Venting Problems: Restoring Balance

Once you’ve identified the symptoms, it’s time to take action. Several solutions can address common venting issues and restore proper functionality.

Clearing Obstructions in Vent Pipes: Restoring Airflow

Blockages in vent pipes are a frequent cause of venting problems. Leaves, debris, or even small animals can obstruct the airflow, preventing the system from functioning correctly.

To clear obstructions, you can use a plumbing snake, a garden hose with a high-pressure nozzle, or even call a professional plumber. Always start from the roof vent and work your way down.

Ensuring Proper Vent Size and Slope: Adhering to Standards

Inadequate vent size or improper slope can also contribute to venting problems. Plumbing codes specify minimum vent sizes based on the number and type of fixtures connected to the system. Similarly, vent pipes should be sloped to prevent water from pooling inside, which can cause blockages.

Consult local plumbing codes and, if necessary, engage a qualified plumber to assess and correct any deficiencies in vent size or slope. This may involve replacing sections of vent pipe with larger diameter pipes or adjusting the slope to ensure proper drainage.

Installing Air Admittance Valves (AAVs): A Modern Solution

Air Admittance Valves (AAVs) offer a convenient solution for venting fixtures in situations where traditional venting is difficult or impractical. AAVs allow air to enter the drainpipe when negative pressure occurs, preventing trap siphonage, but they do not allow sewer gases to escape.

AAVs should be installed in accessible locations to allow for inspection and replacement if necessary. While AAVs can be a useful addition, they are not a substitute for proper venting in all situations. They are typically prohibited as the sole vent for a fixture and should never be used to vent an entire building’s plumbing system. Always check local plumbing codes before installing AAVs to ensure compliance.

Having explored the diverse world of plumbing vents, from the stalwart vent stack to the adaptable AAV, it’s time to consider an integral part of the plumbing system: the trap. These humble components have a critical job, which cannot be maintained without proper venting.

Traps and Vents: A Symbiotic Relationship

The plumbing system is a carefully orchestrated network, and at the heart of its functionality lies a crucial partnership: the symbiotic relationship between plumbing traps and vents. Traps, the U-shaped bends in drainpipes under sinks and toilets, are deceptively simple devices with a vital purpose. Vents, as we’ve discussed, ensure that the pressure within the drain lines is properly regulated. Understanding how these two elements work together is key to appreciating the overall health and efficiency of your plumbing system.

The Role of Plumbing Traps

Plumbing traps, most commonly P-traps, are designed to hold a small amount of water, forming a water seal that acts as a barrier. This water seal prevents noxious and potentially dangerous sewer gases from escaping up through the drain and into your home. Without traps, your living spaces would be filled with unpleasant odors and harmful gases like methane and hydrogen sulfide.

The depth of the water seal, typically around 2-4 inches, is carefully calibrated to provide an effective barrier without impeding drainage. The design and proper installation of traps are paramount to their effectiveness.

Venting’s Crucial Role in Trap Function

While traps provide the physical barrier against sewer gases, they cannot function effectively in isolation. The vent system is essential to maintaining the integrity of the water seal within the trap.

Venting accomplishes this by performing two key functions: equalizing air pressure and preventing siphonage.

Equalizing Air Pressure

As water drains through a plumbing system, it creates pressure fluctuations within the drainpipes. Without a vent, a negative pressure (vacuum) can develop behind the draining water. This vacuum can then pull, or siphon, the water out of the trap, breaking the water seal and leaving your home vulnerable to sewer gases.

Vents provide a pathway for air to enter the drainpipes, equalizing the pressure and preventing the vacuum from forming. This ensures that the water in the trap remains undisturbed.

Preventing Siphonage

Siphonage is the primary threat to a trap’s water seal. There are two primary types of siphonage that can occur:

  • Self-Siphonage: Occurs when a large volume of water drains quickly through a fixture’s drainpipe. The momentum of the water creates a suction that pulls the water out of the trap.
  • Induced Siphonage: Happens when the draining of a nearby fixture creates a vacuum in the drain line, which then siphons the water from another fixture’s trap.

Proper venting eliminates or significantly reduces the risk of both types of siphonage. By providing an air supply, the vent breaks the vacuum and maintains atmospheric pressure within the drain lines.

Maintaining the Water Seal: A Team Effort

In essence, the trap provides the physical barrier, while the vent provides the atmospheric support needed to maintain that barrier. Proper venting is not an optional add-on; it is an integral part of the trap’s functionality. Without it, the trap is rendered largely ineffective, and the health and safety of your home are compromised.

Therefore, any plumbing installation or modification must carefully consider both the proper installation of traps and the adequacy of the venting system to ensure a healthy and well-functioning plumbing system. If problems with sewer gas are suspected, checking both the trap and vent system is an appropriate diagnostic step.

Frequently Asked Questions: Plumbing Vent Diagrams

This FAQ section answers common questions about understanding and interpreting plumbing vent diagrams, building on the information provided in our guide.

What exactly is a plumbing vent diagram?

A plumbing vent diagram is a visual representation of your home’s venting system. It illustrates how waste pipes are connected to vent pipes, which then lead to the outside air. These diagrams are crucial for understanding how the system functions and troubleshooting any problems. They clearly depict the layout of the plumbing vent system.

Why is understanding a plumbing vent diagram important?

Knowing how to read a plumbing vent diagram helps you identify potential issues like clogs or improper venting. Improper venting can lead to sewer gases entering your home, slow drainage, and potential damage to your plumbing system.

What are the key components usually shown on a plumbing vent diagram?

Typical diagrams will display drain pipes, vent pipes, vent stacks, and where they connect to plumbing fixtures like sinks, toilets, and showers. The diagram shows the routing of the vent pipes, ensuring proper air circulation and preventing vacuum formation within the drainage pipes. Correct reading of a plumbing vent diagram can save on repair expenses in the long run.

How can I find a plumbing vent diagram for my house?

Ideally, your home’s blueprints should include a plumbing vent diagram. If you don’t have the blueprints, you might check with your local building department or a professional plumber who may have created a diagram during previous work. Understanding the diagram allows for informed decisions regarding any plumbing system modifications.

So, feeling a bit more confident about tackling that plumbing vent diagram? Hopefully, this guide has given you the knowledge to understand your system better. Happy plumbing!

Leave a Reply

Your email address will not be published. Required fields are marked *
