Unlock Your PC’s Potential: Computer Expansion Slots!

The motherboard, a critical component within any computer, provides the foundational platform for expansion. These expansion capabilities are realized through computer expansion slots, interfaces that allow users to augment their system’s functionality. Examining the role of computer expansion slots inevitably leads to considering the influence of PCIe standards, which govern the speed and bandwidth of modern peripherals. Understanding these slots is crucial for both hobbyists and professionals seeking to optimize performance for demanding applications such as video editing and high-end gaming. Therefore, exploring computer expansion slots empowers users to unlock their PC’s full potential by strategically adding components tailored to their specific needs.

Imagine this: you’re immersed in a cutting-edge game, but your graphics card is struggling to keep up, resulting in choppy gameplay and a frustrating experience. Or perhaps you’re a content creator dealing with massive video files, constantly running out of storage space.

These scenarios highlight a common need: the ability to expand and upgrade your PC’s capabilities.

The solution lies in understanding and utilizing computer expansion slots, the unsung heroes of PC customization.

These slots are the gateway to enhancing performance, adding new features, and extending the lifespan of your computer.

This guide will provide you with the knowledge and confidence to unlock your PC’s full potential.

What are Computer Expansion Slots?

At their core, computer expansion slots are standardized connection points on the motherboard that allow you to add functionality to your system.

Think of them as modular bays, each designed to accommodate specific types of expansion cards.

These cards provide additional resources like enhanced graphics processing, improved audio, faster network connectivity, or increased storage capacity.

The Key to Unlocking Your PC’s Potential

Computer expansion slots are fundamental to the upgradability and longevity of a desktop PC. Unlike laptops or all-in-one computers with limited upgrade options, a desktop PC with accessible expansion slots offers unparalleled flexibility.

Whether you’re a gamer seeking higher frame rates, a creative professional demanding more storage and processing power, or simply a user looking to extend the life of your machine, these slots provide the pathway to achieving your goals.

A Comprehensive Guide to Expansion Slots

This article serves as your comprehensive guide to understanding and utilizing computer expansion slots.

We will delve into the various types of slots available, the expansion cards they support, and the critical considerations to keep in mind before embarking on any upgrades.

By the end of this guide, you’ll be equipped with the knowledge to make informed decisions.

You can optimize your PC for your specific needs and ensure it remains a powerful and versatile tool for years to come.

A comprehensive guide to expansion, though, extends beyond simply identifying the possibilities. To truly grasp the power of expansion slots, we must first understand the foundation upon which they reside: the motherboard.

The Foundation: Understanding the Motherboard’s Role

The motherboard is the keystone of any computer system. It is the central printed circuit board (PCB) that houses and connects all the critical components, acting as the communication nexus for the CPU, RAM, storage devices, and, of course, expansion cards.

Without a functional and appropriately chosen motherboard, even the most powerful components will be rendered useless.

The Motherboard as Central Hub

Think of the motherboard as the central nervous system of your PC. Every component, from the processor to the peripherals, relies on the motherboard to communicate and function correctly.

The motherboard provides the electrical pathways and connection interfaces required for all the parts of a computer to communicate with each other.

These pathways, called traces, act like tiny roads, allowing data to flow seamlessly between components.

It dictates the type of CPU you can use, the amount and speed of RAM you can install, and the number and type of expansion cards you can connect.

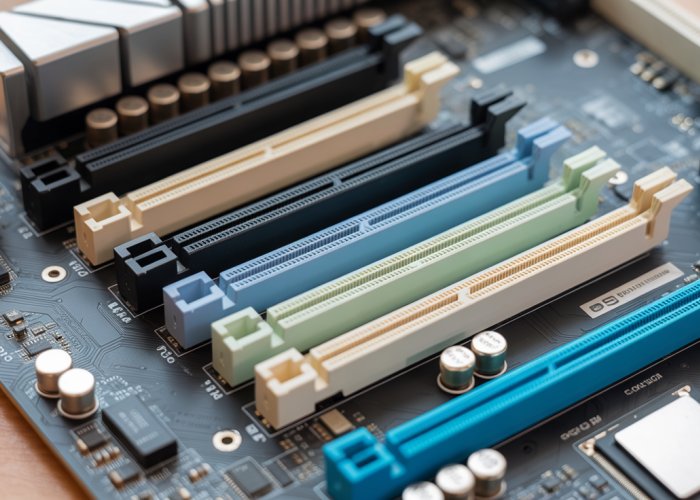

Expansion Slot Variety on Motherboards

Modern motherboards feature a variety of expansion slots, each designed for specific purposes.

Understanding these slots is crucial for making informed decisions about upgrades and expansions.

The most common types include:

• PCIe (PCI Express): The dominant standard for high-bandwidth devices like graphics cards, NVMe SSDs, and high-speed network cards. They come in different lane configurations (x1, x4, x8, x16) with x16 generally being used for Graphics cards to provide maximum bandwidth.

• M.2: Primarily used for compact, high-speed storage devices like NVMe SSDs, offering significantly faster data transfer rates than traditional SATA connections.

• PCI (Peripheral Component Interconnect): An older standard, now largely legacy, that was used for sound cards, network cards, and other peripherals.

• SATA (Serial ATA): Though not technically an "expansion slot," SATA ports are essential for connecting storage devices like traditional HDDs and 2.5" SSDs.

Choosing the Right Motherboard for Future Expansion

Selecting the right motherboard is a critical decision that can significantly impact your PC’s future upgradability.

Consider these factors when choosing a motherboard:

• Socket Type: Ensure the motherboard’s CPU socket is compatible with your chosen processor.

• Chipset: The chipset determines the features and capabilities of the motherboard, including the number of PCIe lanes, USB ports, and SATA ports available.

• Form Factor: Motherboards come in various sizes (e.g., ATX, Micro-ATX, Mini-ITX). Choose a form factor that fits your case and provides the desired expansion options.

• Expansion Slots: Evaluate the number and type of expansion slots available. Ensure the motherboard has enough slots for your current and future needs, with a close look at the PCIe lane distribution and number of M.2 slots.

• Future Needs: Anticipate your future needs. If you plan to upgrade your graphics card or add more storage in the future, choose a motherboard with sufficient PCIe slots and M.2 slots.

By carefully considering these factors, you can choose a motherboard that provides a solid foundation for your current build and offers ample opportunities for future expansion and upgrades.

Expansion Slot Types: A Deep Dive

Now that we’ve established the motherboard as the central hub, it’s time to delve into the specific types of expansion slots you’ll find residing on this crucial component. Understanding the capabilities and limitations of each slot is essential for making informed decisions about upgrades and expansions, ensuring compatibility and optimal performance for your PC.

PCIe (PCI Express): The Modern Standard

PCIe, or Peripheral Component Interconnect Express, is the dominant expansion slot standard in modern computers. It offers significantly improved bandwidth and performance compared to its predecessors. This makes it the ideal choice for high-bandwidth devices like graphics cards, NVMe SSDs, and high-speed network cards.

PCIe Advantages Over Older Standards

PCIe’s key advantage lies in its serial interface, which allows for faster and more efficient data transfer compared to the parallel interfaces used by older standards like PCI and AGP. Each PCIe lane operates independently, providing dedicated bandwidth to the connected device.

This architecture results in lower latency and improved overall system performance. The move to PCIe was a significant leap forward, enabling faster data transfer rates and supporting the increasing demands of modern hardware.

PCIe Versions and Bandwidth

PCIe has evolved through several versions, each offering increased bandwidth. PCIe 3.0, 4.0, and 5.0 are the most common versions found in modern systems. Each new generation doubles the bandwidth per lane compared to the previous one.

For example, PCIe 3.0 offers approximately 1 GB/s per lane, while PCIe 4.0 doubles that to 2 GB/s per lane, and PCIe 5.0 again doubles it to 4 GB/s per lane. Choosing a motherboard and devices that support the latest PCIe version ensures you can take full advantage of the available bandwidth.

PCIe Lane Configurations

PCIe slots come in different lane configurations, such as x1, x4, x8, and x16. The number indicates how many lanes are connected to the slot. A PCIe x16 slot provides the highest bandwidth and is typically used for graphics cards, while x1 or x4 slots are commonly used for other peripherals like sound cards or network cards.

The more lanes a slot has, the more bandwidth is available to the connected device, directly impacting its performance. A graphics card in an x16 slot will generally perform better than the same card in an x8 slot, especially in bandwidth-intensive applications.

PCIe Device Examples

Graphics cards are the most common devices that utilize PCIe x16 slots, taking full advantage of the high bandwidth for rendering complex graphics and handling demanding gaming workloads. NVMe M.2 SSDs also use PCIe to achieve incredibly fast storage speeds, significantly reducing load times and improving system responsiveness.

High-speed network cards, such as 10 Gigabit Ethernet adapters, also rely on PCIe to provide the necessary bandwidth for fast and reliable network connectivity. PCIe has become the backbone of modern PC performance, enabling a wide range of devices to operate at their full potential.

PCI (Peripheral Component Interconnect): The Legacy Standard

PCI, or Peripheral Component Interconnect, was once the dominant expansion slot standard, predating PCIe. While still found in some older systems, PCI slots are becoming increasingly rare in modern computers.

PCI’s Historical Significance

PCI played a crucial role in the evolution of PC technology, replacing the older ISA standard and providing a significant performance boost. It allowed for the easy integration of various peripherals, contributing to the widespread adoption of PCs in homes and businesses. PCI was a crucial stepping stone in the development of modern expansion technologies.

PCI Limitations

Compared to PCIe, PCI suffers from several limitations. Its parallel interface is slower and less efficient, and it shares bandwidth among all connected devices. This shared bandwidth can lead to performance bottlenecks, especially when multiple devices are in use simultaneously.

PCI’s limited bandwidth and outdated architecture make it unsuitable for modern high-performance devices. The industry has moved towards PCIe as the superior solution.

PCI Device Examples

In its prime, PCI slots were commonly used for sound cards, network cards, and other peripherals. While these devices can now be found utilizing PCIe, older systems often relied on PCI for these connections.

M.2: The Compact Storage Solution

The M.2 slot is a relatively recent addition to motherboards, designed specifically for compact and high-speed storage solutions, particularly solid-state drives (SSDs). Unlike traditional SATA-based SSDs that connect via cables, M.2 SSDs plug directly into the motherboard, saving space and reducing clutter.

NVMe Protocol and High-Speed Data Processing

Many M.2 SSDs utilize the NVMe (Non-Volatile Memory Express) protocol, which is specifically designed for high-speed data processing with SSDs. NVMe offers significantly lower latency and higher transfer speeds compared to the older SATA protocol, resulting in faster boot times, quicker application loading, and improved overall system responsiveness.

The combination of the M.2 slot and the NVMe protocol has revolutionized storage performance, providing a significant boost to modern computing.

ISA (Industry Standard Architecture): A Look Back at the Past

ISA, or Industry Standard Architecture, represents a bygone era in PC technology. As one of the earliest expansion slot standards, ISA slots were common in older PCs but are now completely obsolete.

ISA’s History and Limitations

ISA slots were slow and limited in their capabilities, struggling to keep pace with the demands of modern hardware. Its bandwidth was significantly lower than even PCI, making it unsuitable for graphics cards or other performance-intensive devices. While important for its time, its limitations ultimately led to its demise.

AGP (Accelerated Graphics Port): The Dedicated Graphics Pioneer

AGP, or Accelerated Graphics Port, emerged as a dedicated connection for graphics cards before the widespread adoption of PCIe. AGP provided a direct link between the graphics card and the motherboard’s memory controller, improving graphics performance compared to PCI.

AGP’s Purpose and Supersession by PCIe

AGP was designed to address the increasing demands of 3D graphics, offering a significant performance boost for gaming and other visually intensive applications. However, AGP was eventually superseded by PCIe, which offered even greater bandwidth and scalability. While AGP played a vital role in advancing graphics technology, PCIe’s superior capabilities ultimately made it the preferred standard.

The landscape of expansion slots and their various forms sets the stage for understanding the tools we can actually plug into them. Expansion cards are the tangible means by which we enhance our computers.

These cards come in various forms, each designed to address specific performance bottlenecks or add entirely new functionalities. Let’s delve into some of the most common and impactful types of expansion cards available.

Expansion Cards: Extending Your PC’s Capabilities

Expansion cards are the physical components that slot into the expansion slots on your motherboard, providing a direct route to upgrading or expanding the functionality of your computer. They represent a modular approach to PC customization.

You can tailor your system to meet specific needs. Whether you’re a gamer craving higher frame rates, a content creator needing more storage, or a professional requiring faster network speeds, there’s an expansion card designed for you.

Graphics Cards: Enhancing Visual Performance

A dedicated graphics card (GPU) is often the most impactful upgrade you can make, especially if you’re a gamer or work with visually intensive applications. Connecting a graphics card to a PCIe slot unlocks significantly improved gaming and content creation performance.

This boost comes from the dedicated processing power of the GPU, which handles the complex calculations required to render images and videos. Offloading this task from the CPU frees up system resources, resulting in smoother gameplay, faster video editing, and improved overall responsiveness.

When selecting a graphics card, compatibility is key. Ensure the card is compatible with your motherboard’s PCIe slot (version and lane configuration) and that your power supply can handle the card’s power requirements.

The physical size of the card also matters. Some high-end cards are quite large and may not fit in smaller cases.

Choosing the Right Graphics Card

Selecting the right graphics card involves considering your budget, the resolution you intend to play at (e.g., 1080p, 1440p, 4K), and the types of games or applications you’ll be using. Researching benchmarks and reviews is essential to making an informed decision.

Sound Cards: Elevating Audio Quality

While most motherboards come with integrated audio, a dedicated sound card can provide a noticeable improvement in audio quality.

A dedicated sound card bypasses the onboard audio circuitry, which is often susceptible to interference and limitations in audio processing capabilities. This results in cleaner, more detailed sound, especially when paired with high-quality headphones or speakers.

Features of Dedicated Sound Cards

Different types of sound cards offer various features, such as surround sound support, high-resolution audio playback, and advanced audio processing effects.

These features can enhance your gaming experience, make music sound richer and more immersive, and improve the clarity of voice communication.

Network Cards: Expanding Connectivity Options

A network card provides your computer with the ability to connect to a network, whether it’s a wired Ethernet connection or a wireless Wi-Fi connection.

While most motherboards include built-in network interfaces, adding a dedicated network card connected to a PCIe slot can offer several advantages. These advantages include faster speeds, more reliable connectivity, and support for advanced networking features.

Types of Network Cards

Ethernet cards are ideal for situations where a stable, high-speed wired connection is required. Wi-Fi cards provide wireless connectivity, allowing you to connect to networks without the need for cables. Some network cards also offer features like multiple Ethernet ports or support for the latest Wi-Fi standards (e.g., Wi-Fi 6, Wi-Fi 6E).

Storage Devices (SSD, HDD, NVMe): Increasing Storage Capacity and Speed

Adding storage devices is a fundamental way to expand your computer’s capabilities. SSDs (Solid State Drives) and HDDs (Hard Disk Drives) can be added via SATA connections to the motherboard, increasing your storage capacity for files, applications, and operating systems.

NVMe (Non-Volatile Memory Express) SSDs, connected to M.2 slots, offer significantly faster performance compared to traditional SATA SSDs.

Benefits of NVMe SSDs

NVMe SSDs utilize the PCIe interface to achieve incredibly fast read and write speeds, resulting in quicker boot times, faster application loading, and improved overall system responsiveness. They are particularly beneficial for demanding tasks like video editing, gaming, and large file transfers.

When choosing storage devices, consider the type of storage you need (SSD for speed, HDD for capacity), the interface (SATA or NVMe), and the available M.2 or SATA ports on your motherboard.

Expansion cards offer incredible potential for boosting your PC’s capabilities, but before you rush into an upgrade, it’s crucial to pause and consider a few vital aspects. Ignoring these factors can lead to frustrating compatibility issues, system instability, or even damage to your components. Let’s explore the key considerations to ensure a smooth and successful expansion card installation.

Important Considerations Before Upgrading

Before popping in that new graphics card or blazing-fast SSD, it’s vital to ensure a smooth upgrade process. This means carefully evaluating compatibility, power, and space constraints to prevent any unpleasant surprises. Let’s examine these key areas in detail.

Motherboard Compatibility: Ensuring a Perfect Fit

The foundation of any successful expansion lies in ensuring seamless compatibility between the expansion card and your motherboard. This involves more than just physically plugging the card into a slot.

It requires a thorough understanding of your motherboard’s capabilities and limitations. Verifying compatibility is paramount, as mismatched components can lead to system instability or complete failure.

Checking Available PCIe Slots and Chipset

The first step is to identify the available PCIe slots on your motherboard. Refer to your motherboard manual or manufacturer’s website for a detailed layout.

Pay close attention to the number of slots, their physical size (e.g., x1, x4, x8, x16), and the PCIe version supported (e.g., 3.0, 4.0, 5.0). A graphics card, for instance, typically requires a PCIe x16 slot for optimal performance.

The motherboard chipset also plays a crucial role in compatibility. The chipset determines the number of PCIe lanes available and the overall capabilities of the motherboard.

Ensure that the chipset supports the type and number of expansion cards you plan to install. Again, consult the motherboard manual for chipset specifications.

Reviewing the Motherboard Manual: Your Upgrade Bible

The motherboard manual is your best friend during the upgrade process. This often-overlooked document contains a wealth of information about your motherboard’s specifications, supported devices, and installation guidelines.

It provides detailed information on:

• PCIe slot configurations
• Chipset capabilities
• Supported expansion card versions
• Any specific compatibility notes or limitations

By carefully reviewing the manual, you can avoid potential compatibility issues and ensure a smooth installation process.

Power Supply Requirements: Supplying the Juice

Expansion cards, especially high-performance graphics cards, consume significant amounts of power. It’s essential to ensure that your power supply unit (PSU) can handle the added power draw of these cards. An inadequate PSU can lead to system instability, crashes, or even damage to your components.

Calculating Total Power Consumption

Before installing a new expansion card, calculate the total power consumption of your system. This involves adding up the power requirements of all your components, including:

• CPU
• Motherboard
• RAM
• Storage devices
• Expansion cards

The power consumption is listed in watts (W) for each component’s specifications. Add a safety margin of 20-30% to account for peak power draws and future upgrades. This will give you the minimum wattage required for your PSU.

Choosing a Suitable PSU

Once you know your system’s power requirements, you can choose a PSU with sufficient wattage. It’s generally better to err on the side of caution and select a PSU with a slightly higher wattage than your calculated minimum.

Consider the PSU’s efficiency rating (e.g., 80+ Bronze, Gold, Platinum). Higher efficiency ratings mean less wasted energy and lower operating temperatures.

A high-quality PSU is a worthwhile investment that can protect your components and ensure stable system performance.

Case Size and Cooling: Managing Space and Heat

The physical dimensions of your computer case and the cooling solutions available are crucial factors to consider before installing an expansion card. Physical space constraints within the computer case can prevent you from installing certain expansion cards.

Checking Physical Dimensions and Clearance

Measure the available space inside your case to ensure that the expansion card will fit without obstruction.

Pay attention to the length, width, and height of the card. Some high-end graphics cards can be quite large and may not fit in smaller cases.

Ensure there is adequate clearance around the card for airflow and cable management.

Addressing Cooling Needs

High-performance expansion cards, particularly graphics cards, generate a significant amount of heat. Proper cooling solutions are essential to prevent overheating and maintain stable performance.

Consider the following cooling options:

• Aftermarket CPU coolers
• Case fans
• Liquid coolers

Ensure that your case has adequate airflow to dissipate heat effectively. You might need to add additional case fans or upgrade your CPU cooler to handle the increased heat load.

Ignoring cooling needs can lead to thermal throttling, reduced performance, and a shortened lifespan for your components.

So, there you have it! Hopefully, you now have a much better grasp of computer expansion slots and how they can boost your PC. Go forth and expand! Happy building!
