Beam Bridge Parts: Your Ultimate Guide [Expert Tips]

The structural integrity of any beam bridge heavily relies on properly designed and manufactured beam bridge parts. Understanding how forces distribute throughout the bridge deck is fundamental to the safe operation of these structures. The American Association of State Highway and Transportation Officials (AASHTO) provides critical guidelines and specifications for the design and construction of beam bridge parts. Furthermore, the correct assembly sequence of beam bridge parts ensures longevity, an important consideration for locations prone to seismic activity.

Beam bridges stand as silent sentinels across our landscapes, connecting communities and facilitating the flow of commerce. These seemingly simple structures are, in fact, marvels of engineering, relying on a delicate interplay of precisely designed components.

This section serves as an introduction to the world of beam bridges, highlighting their importance and setting the stage for a detailed exploration of their constituent parts.

What is a Beam Bridge?

At its core, a beam bridge is the most fundamental type of bridge.

Its design is elegantly straightforward: a horizontal beam supported at each end by piers or abutments. The beam, typically constructed from steel, concrete, or timber, bears the load of traffic and transfers it to the supports.

Beam bridges are best suited for shorter spans, typically ranging from a few meters to several hundred meters, where the bending stresses within the beam remain manageable.

Their simplicity makes them a cost-effective and efficient solution for many infrastructure needs, particularly in areas with relatively flat terrain.

The Significance of Beam Bridges

Beam bridges play a vital role in modern transportation networks. They provide essential links across rivers, valleys, and roadways, enabling the seamless movement of people and goods.

Consider the daily commute, the transport of essential supplies, or the connection of rural communities – in countless scenarios, beam bridges form an indispensable part of the infrastructure that sustains our way of life.

Their widespread use is a testament to their versatility, adaptability, and enduring relevance in the face of evolving transportation demands.

A Comprehensive Guide to Beam Bridge Parts

This article aims to provide a comprehensive and accessible guide to the key components that make up a beam bridge.

We will delve into the intricacies of the superstructure, the load-bearing portion above the supports, examining elements such as girders, decks, and stringers.

We will also explore the substructure, the foundation that supports the entire structure, focusing on abutments, piers, and bearings.

By understanding the function of each part and how they interact, you will gain a deeper appreciation for the engineering principles that underpin these essential structures.

Expert Tips for Enhanced Understanding

Throughout this guide, we will share expert tips and insights to enhance your understanding of beam bridge parts.

These tips will cover a range of topics, from load distribution and material selection to inspection and maintenance practices.

Our goal is to equip you with the knowledge necessary to appreciate the complexities of beam bridge design and construction, and to understand the critical role these structures play in our daily lives.

Get ready to discover the fascinating world of beam bridge engineering and unlock the secrets of these essential infrastructure components.

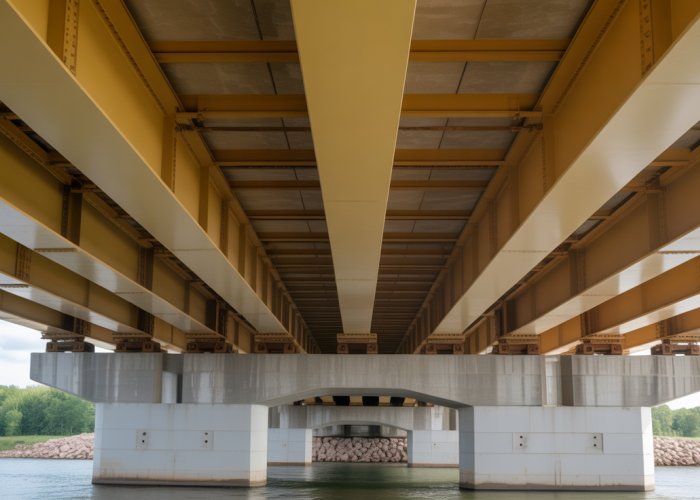

Decoding the Superstructure: The Bridge’s Load-Bearing Heart

Beam bridges, for all their apparent simplicity, rely on a sophisticated interplay of structural elements working in concert. The superstructure of a beam bridge is the component directly responsible for carrying the load – the traffic, environmental forces, and the bridge’s own weight – across the span. Understanding the individual parts of the superstructure and how they interact is crucial to appreciating the engineering behind these essential structures.

The superstructure is, in essence, the "deck" of the bridge and all of the supporting elements that directly contribute to its ability to carry weight and distribute it safely to the substructure (the foundations). These elements include girders, the deck itself, stringers, shear connectors (in composite designs), expansion joints, and diaphragms.

Girders: The Primary Support System

Girders are the primary horizontal load-bearing members of the superstructure. They run lengthwise along the bridge, spanning the distance between supports (abutments and/or piers). The deck sits atop the girders, and the load is transferred from the deck to the girders, which then transmit it to the supports.

Girders can be constructed from various materials, each with its own strengths and applications.

• Steel girders are known for their high strength-to-weight ratio, making them suitable for longer spans and heavier loads.

• Concrete girders are cost-effective and offer good resistance to corrosion.

• Composite girders combine the advantages of both steel and concrete, typically using a steel girder with a concrete deck bonded to it (more on this later).

The design of the girders is critical to the overall structural integrity of the bridge. Engineers carefully calculate the bending stresses and shear forces that the girders will experience under various loading conditions. This analysis informs the size, shape, and material of the girders.

The way that the load is distributed across the span has a direct impact on the girder design. Girders are designed to resist bending, shear, and torsion. They must be strong enough to handle the anticipated loads without excessive deflection or failure.

Deck: The Roadway Itself

The deck is the surface upon which traffic travels. It’s the most visible part of the superstructure and experiences direct exposure to the elements and the constant wear of vehicles.

Typically, bridge decks are constructed from reinforced concrete or steel.

• Concrete decks are durable and provide a good riding surface.

• Steel decks are lighter than concrete and can be prefabricated for faster construction.

The deck plays a vital role in distributing the weight of traffic and other loads to the girders below. The deck acts as a large plate, spreading the load across multiple girders.

Stringers: Secondary Support Members

Stringers are secondary horizontal beams that run parallel to the girders, but are typically spaced more closely together. They are positioned beneath the deck and above the girders.

Their primary function is to further distribute the load from the deck to the girders, preventing localized stress concentrations. They contribute to a more uniform distribution of weight.

Shear Connectors: Joining Forces in Composite Bridges

In composite beam bridge construction, shear connectors are essential. These devices, usually steel studs or channels, are welded to the top of the steel girders.

These connectors mechanically bond the concrete deck to the steel girders, creating a composite section that acts as a single unit. This increases the bridge’s strength and stiffness, allowing for longer spans and/or reduced girder sizes. Shear connectors resist the shear forces that develop between the deck and the girders as the bridge bends under load.

Expansion Joints: Allowing for Movement

Bridges are subject to thermal expansion and contraction due to temperature changes. Without proper accommodation, these movements can create significant stresses within the structure, potentially leading to cracking and failure.

Expansion joints are gaps intentionally built into the deck to allow for this movement. They are typically located at the ends of the bridge and at intervals along its length.

These joints allow the deck to expand and contract freely without putting undue stress on the girders or supports.

Diaphragms: Maintaining Stability

Diaphragms are vertical bracing elements that are placed between the girders. They are typically constructed from steel or concrete and are spaced at regular intervals along the span.

The primary purpose of diaphragms is to provide lateral stability to the girders. They prevent the girders from twisting or buckling under load, particularly under eccentric or wind loads. Diaphragms also help to distribute loads laterally among the girders, promoting a more balanced distribution of stress.

Exploring the Substructure: The Unseen Foundation

While the superstructure captures the eye, the substructure is the unsung hero, the steadfast foundation upon which the entire bridge rests.

It is the critical link between the bridge and the earth, responsible for transferring the immense loads generated by traffic and environmental factors to the ground.

Without a properly designed and constructed substructure, even the most advanced superstructure would be rendered useless.

The substructure’s primary components are abutments, piers, and bearings, each playing a crucial role in ensuring the bridge’s stability and longevity.

Abutments: Anchoring the Ends

Abutments serve as the end supports for the bridge, integrating the bridge structure with the approaching roadway.

They must withstand not only vertical loads from the bridge deck, but also lateral forces from soil pressure behind them.

Materials and Construction:

Abutments are typically constructed from reinforced concrete, offering the necessary strength and durability to resist these forces.

Construction methods vary depending on the site conditions and design requirements, but often involve excavating to the desired depth, constructing a reinforced concrete wall, and backfilling with compacted soil.

Load Transfer Mechanism:

The importance of abutments lies in their ability to transfer the concentrated loads from the bridge deck to a wider area of the underlying soil.

This distribution of force is critical in preventing soil failure and ensuring the long-term stability of the bridge.

Piers: Providing Intermediate Support

For bridges spanning longer distances, intermediate supports known as piers are essential.

These vertical structures are strategically placed between the abutments to reduce the span length of the bridge deck, thereby decreasing the bending stresses on the girders.

Pier Designs:

Pier designs can vary widely depending on factors such as water depth, soil conditions, and aesthetic considerations.

Common pier types include:

• Solid Piers: Simple, massive structures suitable for moderate loads.

• Column Piers: More slender, offering less obstruction to water flow, often used in river crossings.

• Hammerhead Piers: Featuring a wide cap to support the bridge deck, providing increased stability.

Stability and Load-Bearing Capacity:

Piers must possess exceptional stability and load-bearing capacity to withstand the combined forces of the bridge deck, traffic, and environmental loads, such as wind and water currents.

Their design must account for potential scour (erosion of soil around the pier base) in riverine environments.

Bearings: The Interface

Bearings act as the crucial interface between the superstructure and the substructure.

Their primary function is to allow for controlled movement between these two components, accommodating thermal expansion and contraction, as well as slight rotations due to traffic loads.

Accommodating Movement:

Without bearings, these movements would induce significant stresses in the bridge structure, potentially leading to cracking and failure.

Bearings come in various types, including:

• Elastomeric Bearings: Made from flexible rubber-like materials, suitable for smaller movements and loads.

• Steel Bearings: Designed to accommodate larger movements and loads, often incorporating rollers or rockers to facilitate sliding and rotation.

• Pot Bearings: Utilizing a confined elastomeric disc to support vertical loads and allow for rotation.

By allowing for movement while maintaining structural integrity, bearings ensure the long-term durability and safety of the beam bridge.

Material Matters: Concrete and Steel in Beam Bridge Construction

The enduring success of beam bridges hinges significantly on the judicious selection and application of construction materials. Two materials, in particular, stand out as indispensable: concrete and steel. Their unique properties, when combined thoughtfully, create structures capable of withstanding immense loads and environmental stressors.

Concrete: The Foundation of Strength

Concrete’s compressive strength and relative cost-effectiveness make it an ideal choice for numerous bridge components. Its ability to be cast into virtually any shape further enhances its versatility.

However, concrete is notably weak in tension. This inherent limitation necessitates the integration of reinforcement to create a composite material capable of resisting both compressive and tensile forces.

The Role of Reinforcement (Rebar)

Steel reinforcement, commonly known as rebar, plays a crucial role in enhancing concrete’s tensile strength. By embedding rebar within the concrete matrix, engineers create a composite material that leverages the strengths of both components.

The steel rebar resists tensile stresses, while the surrounding concrete handles compression. This synergistic relationship allows for the construction of bridge elements capable of withstanding a wide range of forces.

Different types of rebar arrangements are used based on the specific structural requirements. These include:

• Longitudinal Rebar: Runs along the length of the beam or deck to resist bending stresses.
• Transverse Rebar: Placed perpendicular to longitudinal rebar to resist shear forces and prevent cracking.
• Stirrups: Vertical or inclined reinforcement used to further enhance shear resistance, particularly near supports.

Steel: Strength and Ductility

Steel offers exceptional tensile strength, making it an ideal material for components subjected to significant tension or bending stresses. Its high strength-to-weight ratio allows for longer spans and reduced material usage compared to concrete alone.

Furthermore, steel’s ductility, or its ability to deform significantly before fracturing, provides an added safety margin by allowing for redistribution of stresses under extreme loads.

Steel Girder Fabrication and Assembly

Steel girders, the primary horizontal supports in many beam bridges, are typically fabricated off-site in specialized facilities. The fabrication process involves cutting steel plates to the required dimensions, welding them together to form the desired girder shape, and applying protective coatings to prevent corrosion.

Once fabricated, the steel girders are transported to the construction site and erected using cranes or other heavy equipment. Accurate alignment and connection of the girders are crucial for ensuring the structural integrity of the bridge.

• Welding: A critical process in girder fabrication, requiring skilled technicians and rigorous quality control to ensure strong and durable joints.
• Bolting: Often used in conjunction with welding to connect girder segments and other structural elements, providing additional strength and redundancy.
• Protective Coatings: Applied to steel surfaces to protect against corrosion from environmental factors such as moisture, salt, and pollutants.

Design and Engineering: Ensuring Structural Integrity

The construction of a beam bridge is far more than simply assembling concrete and steel. It’s a meticulously orchestrated endeavor rooted in rigorous design and engineering principles.

These principles ensure the bridge’s stability, durability, and ability to withstand the constant barrage of loads and environmental factors.

Bridge Design: A Holistic Approach

Bridge design is a comprehensive process that begins with a thorough understanding of the bridge’s intended purpose and the environmental conditions it will face. This involves detailed load calculations, structural analysis, and adherence to stringent industry standards.

Load calculations determine the maximum forces the bridge will need to withstand, including the weight of vehicles, pedestrians, and environmental loads like wind and snow.

Structural analysis then uses these load calculations to predict how the bridge will behave under stress, identifying potential weak points and areas that require reinforcement.

Adherence to Standards and Guidelines

The American Association of State Highway and Transportation Officials (AASHTO) and the Federal Highway Administration (FHWA) play crucial roles in setting the standards for bridge design and construction in the United States.

These organizations provide detailed guidelines that cover everything from material specifications to structural design principles.

Compliance with AASHTO and FHWA standards is mandatory for all publicly funded bridge projects, ensuring a consistent level of safety and quality across the nation.

The Role of State DOTs

State Departments of Transportation (DOTs) are responsible for overseeing bridge projects within their respective states.

They ensure that all designs meet the required standards and that construction is carried out according to approved plans. State DOTs also play a vital role in bridge inspection and maintenance, ensuring the long-term safety and functionality of these critical infrastructure assets.

Stress and Deflection: Managing Forces

One of the primary goals of bridge design is to manage stress and deflection. Stress refers to the internal forces within a material caused by external loads, while deflection refers to the amount the bridge bends or deforms under those loads.

Engineers must carefully consider both stress and deflection to ensure that the bridge can safely carry its intended load without collapsing or becoming unstable.

Computer Modeling for Prediction

Modern bridge design relies heavily on computer modeling to predict how a structure will behave under various loading conditions. Finite element analysis (FEA) software allows engineers to create detailed models of the bridge and simulate the effects of different loads, wind conditions, and seismic events.

This allows them to identify potential problems early in the design process and optimize the structure for maximum strength and efficiency.

Span Length: A Key Parameter

The span length, or the distance between supports, is one of the most critical parameters in beam bridge design.

The span length directly affects the amount of stress and deflection in the bridge, as well as the type and amount of materials required.

Longer spans require larger, stronger beams to support the increased loads. The selection of materials is also heavily influenced by span length.

For shorter spans, concrete beams may be sufficient, while longer spans typically require the use of high-strength steel or composite materials.

Building and Maintaining: From Construction to Longevity

The lifespan of a beam bridge extends far beyond its initial construction. It requires a commitment to ongoing maintenance and a deep understanding of the construction process itself. From the first shovel of dirt to decades of service, these aspects are inextricably linked to the bridge’s enduring safety and functionality.

Bridge Construction: A Step-by-Step Process

Building a beam bridge is a complex undertaking involving numerous stages, each requiring precision and adherence to engineering specifications. This is the vital groundwork for years of service.

• Site Preparation and Foundation Construction: The initial phase involves preparing the site, which may include clearing vegetation, grading the terrain, and diverting waterways. Foundation construction follows, typically involving the installation of pilings or footings to provide a stable base for the bridge’s substructure. The stability of the foundation is paramount, directly impacting the bridge’s load-bearing capacity and overall integrity.

• Abutment and Pier Construction: Following the foundation, the abutments (end supports) and piers (intermediate supports for multi-span bridges) are constructed. These elements form the backbone of the substructure, providing vertical support for the bridge’s superstructure.
  The specific design and materials used for abutments and piers depend on factors such as soil conditions, hydraulic forces, and the overall bridge design.

• Girder Placement: With the substructure in place, the next step is the placement of the girders, which are the primary horizontal load-bearing components of the superstructure. Girders can be made of steel, concrete, or a composite of both. The method of girder placement varies depending on factors such as span length, site accessibility, and the weight of the girders. Cranes are often used to lift the girders into position, requiring careful coordination and precise execution.

• Deck Installation: Once the girders are in place, the bridge deck, which serves as the traffic surface, is installed. The deck can be made of concrete, steel, or a composite material. In many cases, the deck is constructed by pouring concrete onto a system of formwork supported by the girders. After the concrete has cured, the formwork is removed.

• Finishing Touches: The final stages of construction involve installing railings, barriers, lighting, and other features that enhance the bridge’s safety and functionality. Roadway approaches are also constructed to provide smooth transitions onto and off the bridge.

Bridge Maintenance: Preserving the Investment

Regular maintenance is crucial for extending the lifespan of a beam bridge and ensuring its continued safety and functionality. Neglecting maintenance can lead to accelerated deterioration, structural damage, and ultimately, bridge failure.

• The Importance of Regular Bridge Inspection: Bridge inspections are essential for identifying potential problems before they escalate into serious issues. Trained inspectors visually examine all aspects of the bridge. These aspects include the superstructure, substructure, and approaches.
  They look for signs of deterioration, damage, or distress. The frequency of inspections depends on factors such as bridge age, traffic volume, environmental conditions, and the results of previous inspections.

• Common Maintenance Tasks: Based on inspection findings, a variety of maintenance tasks may be required. These tasks are to address specific issues and prevent further deterioration.

  • Repairing Cracks: Cracks in concrete or steel components can weaken the structure and allow water to penetrate, leading to corrosion and further damage. Repairing cracks involves cleaning and sealing them with epoxy or other appropriate materials.

  • Replacing Deteriorated Components: Over time, bridge components such as bearings, expansion joints, and deck surfaces can deteriorate due to wear and tear, corrosion, or environmental factors. Replacing these components is essential for maintaining the bridge’s structural integrity and ride quality.

  • Applying Protective Coatings: Applying protective coatings, such as paint or sealants, can help protect bridge components from corrosion and environmental damage. Coatings are particularly important for steel structures. They act as a barrier against moisture and chemicals.

  • Scour Mitigation: Scour, the erosion of soil around bridge foundations due to flowing water, is a leading cause of bridge failure. Scour mitigation measures, such as riprap (rock armor) or concrete countermeasures, are often implemented to protect bridge foundations from scour.

  • Joint and Bearing Maintenance: Expansion joints and bearings allow for thermal expansion and contraction of the bridge. Maintenance and replacement of these components are essential to prevent stress buildup in the structure.

By diligently addressing maintenance needs, transportation agencies can ensure the long-term safety and reliability of beam bridges, protecting the public and preserving a vital infrastructure asset.

Expert Insights: Pro Tips for Beam Bridge Understanding

While a thorough understanding of individual beam bridge components is essential, grasping the overarching principles that govern their behavior unlocks a deeper appreciation for these vital structures. Here, we distill the knowledge of seasoned bridge engineers into three key insights that will elevate your understanding of beam bridge design, construction, and maintenance.

Tracing the Load Path: The Bridge’s Internal Dialogue

Imagine a beam bridge as a complex communication network, where loads represent messages traveling from one point to another. Understanding the load path, the route these forces take through the bridge’s structure, is paramount.

The load path begins with the traffic traversing the deck. This weight is then transferred to the stringers, which distribute it further to the primary load-bearing girders. The girders, in turn, transmit the load to the substructure – the abutments and piers – which ultimately transfer it to the ground.

Visualizing this flow of forces allows engineers to identify critical stress points, anticipate potential failure modes, and optimize the design for maximum efficiency. Neglecting to fully comprehend the load path can lead to under-designed components and compromised structural integrity.

Material Selection: A Symphony of Properties

Choosing the right materials for each component of a beam bridge is not merely a matter of cost; it’s a careful consideration of material properties and how they interact under stress.

Concrete, with its high compressive strength, forms the foundation of many bridge decks and substructure elements. However, concrete is weak in tension, requiring the addition of steel reinforcement (rebar) to resist tensile forces.

Steel, on the other hand, boasts high tensile and compressive strength, making it ideal for girders and other load-bearing members.

The key is to select materials that complement each other, creating a synergistic system that can withstand the rigors of traffic and environmental conditions. Furthermore, material selection must also consider the long-term durability and resistance to corrosion, ensuring the bridge’s longevity.

The Indispensable Role of Regular Bridge Inspections

Even the most meticulously designed and constructed beam bridge is not immune to the ravages of time and the elements. Regular bridge inspections are crucial for identifying potential problems early on, before they escalate into major structural issues.

Trained inspectors examine every component of the bridge, from the deck to the foundation, looking for signs of cracking, corrosion, settlement, or other forms of deterioration. These inspections are not merely visual assessments; they often involve non-destructive testing methods to assess the internal condition of materials.

The data gathered during inspections is used to prioritize maintenance and repair efforts, ensuring that resources are allocated effectively to address the most pressing concerns. By proactively addressing potential problems, regular bridge inspections help to extend the lifespan of beam bridges and maintain their safety for the traveling public. Failing to inspect puts lives and infrastructure at risk.

So, there you have it – your comprehensive look at beam bridge parts! Hopefully, you feel better equipped to understand and appreciate the engineering marvel that keeps us safely crossing those spans. Keep exploring, and next time you’re on a bridge, maybe you’ll think about all those essential beam bridge parts working hard down below!
